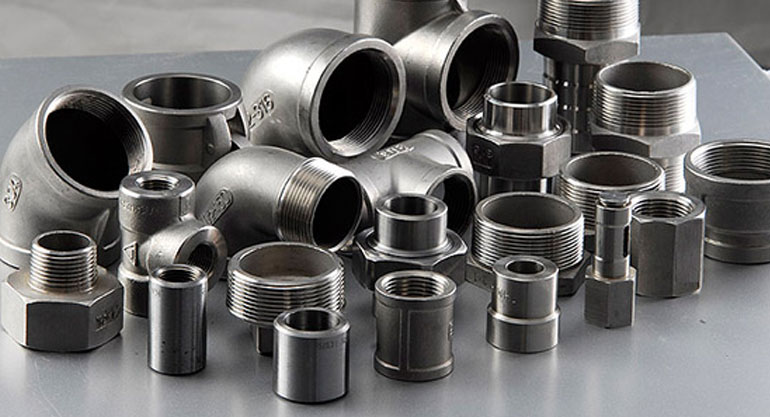

Forge Fittings
Stainless Steel Forge Fittings Specifications:
| Grades | ASTM A479, A182 - 304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L, 17-4PH & 400 Series |
|---|---|
| SS Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| SS Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Stainless Steel Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 Stainless Steel Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Stainless Steel Forged Fittings Thread | NPT, BSPT, BSPP |
| Stainless Steel Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SS Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Manufacturing Standards of Stainless Steel Forged Fittings
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
ANSI B16.11 Stainless Steel Forged Fittings Forms & Availability
Socketweld / Threaded 100% Radiography Tested
| Products | Size | |
|---|---|---|
| ASTM A182 SS 90° Elbow | ASTM A182 SS 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 SS Forged Tee | ASTM A182 SS Union | |
| ASTM A182 SS Forged Cross | ASTM A182 SS Insert | |
| ASTM A182 SS Screwed Bushing | ASTM A182 SS Threaded Pipe Nipple | |
| ASTM A182 SS Forged Socket weld Cap | ASTM A182 SS Screwed Coupling | |
| ASTM A182 SS Forged Plug | ASTM A182 SS Street Elbow | |
| Preview | Products | ASTM | ASME |
|---|---|---|---|
| SS Forged Elbow | A182 Forged Elbow | SA182 Forged Elbow | |
| SS Forged Tee | A182 Forged Tee | SA182 Forged Tee | |
| SS Forged Cross | A182 Forged Cross | SA182 Forged Cross | |
| SS Forged Coupling | A182 Forged Coupling | SA182 Forged Coupling | |
| SS Forged Union | A182 Forged Union | SA182 Forged Union |
