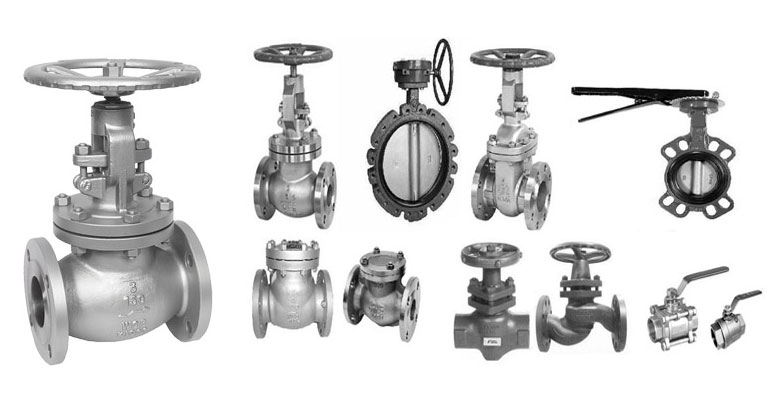

Valve
Alloy Steel Valve Specifications:
| Material | Low Alloy Steel |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature |
-29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter |
DN40-DN300 handle lever
|
| Operation Temperature | -10°C~150°C |
Alloy Steel Valves Chemical Properties
| Grade | Ni | Fe | C | Mn | Si | Cu | Cr | Mo | S | P | Nb |
| Alloy Steel Valves | 32 - 38 | Bal | 0.02 max | 1 - 2 | 0.7 max | 3 - 4 | 19 - 21 | 2 - 3 | 0.005 max | 0.02 max | 0.1 - 0.3 |
AS Valve Mechanical Properties
| Element | Tensile Strength | Density | Melting Point | Elongation | Yield Strength (0.2%Offset) |
| Alloy Steel Valves | Psi -80,000, MPa -551 | 8.1 g/cm3 | 1443 °C (2430 °F) | 30 % | Psi - 35,000, MPa - 241 |
