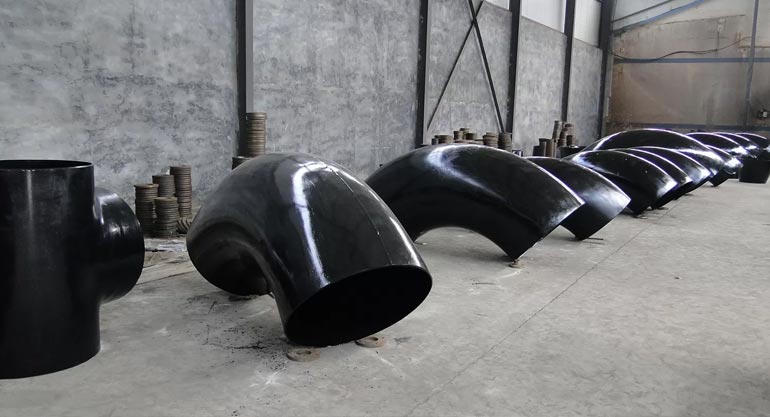

Buttweld Fittings
Carbon Steel Buttweld Fittings Specifications:
| Grades | ASTM A53 Gr B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C, PSL 1 and PSL2 |
|---|---|
| Bending Radius | Radius=1 D, 1.5D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Size Range | Seamless Butt-Weld Fitting: From 1/2″ - 10″ Welded ButtWeld Fitting: From 1/2″ - 48″ |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Size Ranges | ½” NB to 24″ NB in Schedule 10s, 40s, 80s, 160s, XXS. |
| Types | Welded | Seamless | Fabricated |
| Process of Manufacturing | Push, Press, Cast, Forge. |
| Thickness of Fitting | SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75 |
| Products | Sizes |
| CS Stub Ends | 1/2" NB to 14" NB |
| CS Cups | 1/2" NB to 14" NB |
| CS Socket Weld | Upto 2" NB |
| CS Tees | 1" NB to 14" NB |
| CS Nipples | Upto 4" |
| CS Couplings | Upto 4"NB |
| CS Reducers | 1" NB to 14" NB |
| CS Elbow | 1/2" NB to 14" NB |
| Material | Fitting |
| CS | A234 Gr WPA |
| A234 Gr WPB | |
| A234 Gr WPC | |
| CS Alloy High-Temp |
A234 Gr WP1 |
| A234 Gr WP11 | |
| A234 Gr WP12 | |
| A234 Gr WP22 | |
| A234 Gr WP5 | |
| A234 Gr WP9 | |
| CS Alloy Low-Temp |
A420 Gr WPL6 |
| A420 Gr WPL3 |
Suppliers of Schedule 10 carbon steel pipe fittings in India, Purchase Carbon steels concentric reducer and Carbon steels cross fitting at cheap cost.
| Properties | Imperial | Metric |
| Tensile strength | 86300 psi | 595 MPa |
| Modulus of elasticity | 29000 ksi | 200 GPa |
| Yield strength | 37700 psi | 260 MPa |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Hardness, Rockwell B | 85 | 85 |
| Elongation at break (in 50 mm) | 55% | 55% |
| Element | Content (%) |
| Iron, Fe | Balance |
| Carbon, C | 0.03 |
| Chromium, Cr | 18-20 |
| Nickel, Ni | 11-15 |
| Manganese, Mn | 2 |
| Molybdenum, Mo | 3-4 |
| Phosphorous, P | 0.045 |
| Silicon, Si | 1 |
| Sulfur, S | 0.03 |
