Grades | : | ASTM A 234 WPB WP5, WP9, WP11, WP12, WP91 |
Thickness | : | 1mm-300mm |
Width |
: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, 4050mm etc |
Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm, 15000mm etc |
Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair
line, sand blast, Brush, etching, etc |
Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR) |
Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip etc. |
Alloy Steel Polished Plates | Alloy Steel Polished Plates Chrome Molybdenum Polished Plate ASME SA387 Alloy Steel Class 1 Polished Plates ASTM A387 Polished Plates |
Alloy Steel Hot Rolled Plates | Alloy Steel Hot Rolled Plates Chrome Molybdenum Hot Rolled Plate ASTM A387 Alloy Steel Hot Rolled Plates |
Alloy Steel Cold Rolled Plates | Alloy Steel Cold Rolled Plates Chrome Molybdenum Alloy Steel Cold Rolled Plates ASME SA387 Alloy Steel Class 1 Cold Rolled Plates ASTM A387 Cold Rolled Plates |

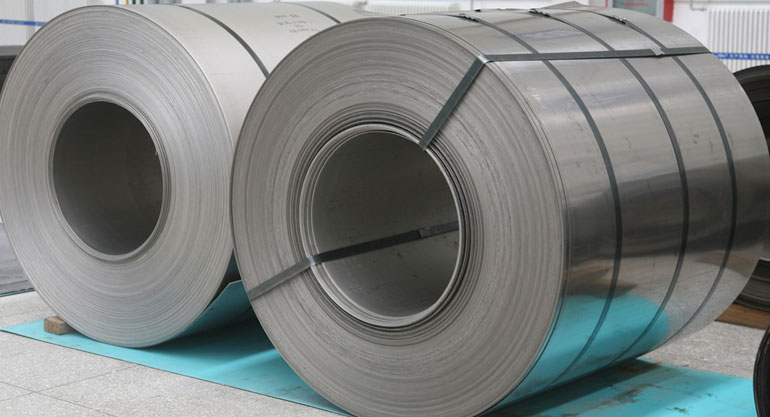

Alloy Steel Coils | Alloy Steel Coils Chrome Molybdenum Coils ASME SA387 Alloy Steel Class 1 Coils ASTM A387 Coils |
Alloy Steel Strips | Alloy Steel Strips Chrome Molybdenum Strips ASME SA387 Alloy Steel Class 1 Strips ASTM A387 Alloy Steel Strips |
Alloy Steel Foils | Alloy Steel Foils Chrome Molybdenum Foils ASME SA387 Alloy Steel Class 1 Foils ASTM A387Alloy Steel Foils |
Alloy Steel Shim Sheet | Alloy Steel Shim Sheet Chrome Molybdenum Shim Sheet ASME SA387 Alloy Steel Class 1 Shim Sheet ASTM A387 Alloy Steel Shim Sheet |
Alloy Steel Circle | Alloy Steel Circle Chrome Molybdenum Circle ASME SA387 Alloy Steel Class 1 Circle ASTM A387 Alloy Steel Circle |
C | Mn | P | S | SI | Cr | Mo | |
Grade 5 | 0.15 max | 0.3 – 0.6 | 0.035 | 0.03 | 0.5 max | 4.00 – 6.00 | 0.45 – 0.65 |
Grade 9 | 0.15 max | 0.30 – 0.6 | 0.03 | 0.03 | 1.0 max | 8.0 – 10.0 | 0.9 – 1.1 |
Grade 11 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.5 – 0.80 | 1.0 – 1.5 | 0.45 – 0.65 |
Grade 12 | 0.05 – 0.17 | 0.4 – 0.65 | 0.035 | 0.035 | 0.15 – 0.4 | 0.8 – 1.15 | 0.45 – 0.6 |
Grade 22 | 0.05 – 0.15 | 0.3 – 0.6 | 0.035 | 0.035 | 0.5 max | 2.0 – 2.5 | 0.9 – 1.1 |
Tensile Strength
(ksi) |
Tensile Strength
(MPa) |
Yield Strength
(ksi) |
Yield Strength (MPa) | Elongation
in 2 inches (%) |
||
A 387 Grade 5 | Class 1 | 60-85 | 415-585 | 30 | 205 | 18 |
Class 2 | 75-100 | 515-690 | 45 | 310 | 18 | |
A 387 Grade 9 | Class 1 | 60-85 | 415-585 | 30 | 205 | 18 |
Class 2 | 75-100 | 515-690 | 45 | 310 | 18 | |
A 387 Grade 11 | Class 1 | 60-85 | 415-585 | 35 | 240 | 22 |
Class 2 | 70-90 | 485-620 | 45 | 310 | 22 | |
A 387 Grade 12 | Class 1 | 50-80 | 380-550 | 33 | 230 | 22 |
Class 2 | 65-85 | 450-585 | 40 | 275 | 22 | |
A 387 Grade 22 | Class 1 | 60-85 | 415-585 | 30 | 205 | 18 |
Class 2 | 75-100 | 515-690 | 45 | 310 | 18 |
Thickness | Plate Weight per Unit Area | Density |
---|---|---|
3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
