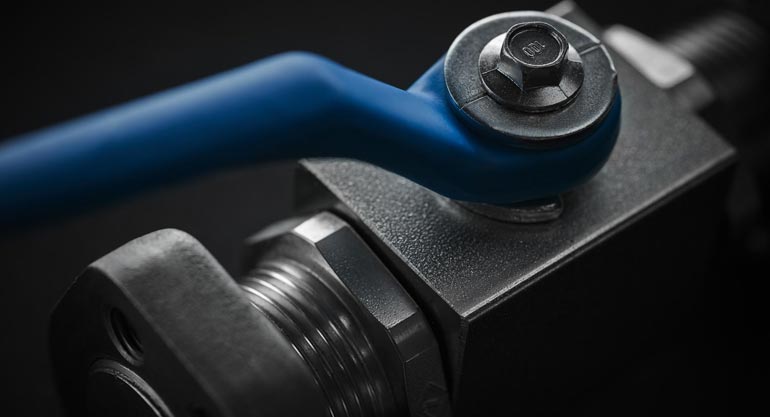

Carbon Steel Valve Specifications:

Material Carbon Steel
Grade Alloy 20 (UNS N08020, Alloy 20, 2.4660), Carpenter 20
Size Range ¼” – 24”
Pressure ANSI Class: 150 thru 2500 PSI/WOG: 200 thru 6000
Temperature 29℃～560℃
Connection BSP, BSPT, NPT, Flanged, Welded
Standards GB9112, DIN2501, BS4504, ISO2084, ANSI125


Chemical Composition CS Valves

Grade Ni C Mn Mo S P Si Cu Cr
Carbon Steel Valves 0.40 Max 0.30 Max 0.60 – 1.35 0.12 Max 0.040 Max 0.035 Max 0.15 – 0.30 0.04 Max 0.30 Max

Mechanical Properties of CS Valve

Element Tensile Strength Elongation Yield Strength (0.2%Offset)
Carbon Steel Valves 70,000 (485) 30 % 36,000 (250)
