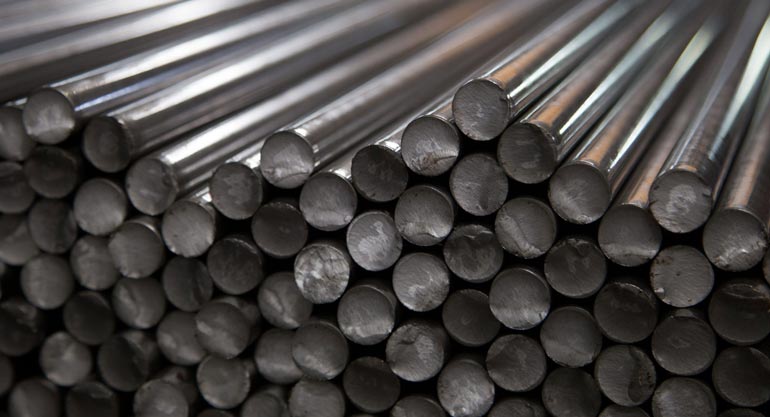

Round/Hex/Square/Bars

Bar Specifications

Bar Length 2 to 6 meters or 8 to 20 feet
Grades ASTM A53 Gr B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C, PSL 1 and PSL2
Rod Chamfering Available in 30, 45 & 60 degree thru fully automatic both-end chamfering machine
Ultrasonic Test of ASTM A276 Threaded Rod As per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO it is 100% tested thru Digital Ultrasonic Flaw Detector,
10423:2003-PSL 3, MIL STD 2154, SEP 1920:1984
SS Round Bar Size Tolerances h11
Tolerance of Cold Rolled SS Round Bar Length Stock in special cut to length bar in tolerance – 0/+10mm (-0 +0.5 inch)
Surface Finish of Cold Rolled SS Bar Cold drawn or Belt polished condition
Bar Heat Treatment Annealed and Solution Annealed


Tolerances of Precision AISI 1018 Rod (BS 970-3)

Precision Carbon Steel 1018 Rod Tolerances
Section Size,
diameter 		Permitted overall variation
Class A Class B Class C
mm mm mm mm
Round ≧ 6 <75 0.05 0.025 0.013

Tolerance of AISI 1018 Square Bar (BS EN ISO 286-2 )

Cold Drawn AISI 1018 Carbon Steel Bright Bar Tolerance ISO “H” Series in MM
NOMINAL SIZE h5 h6 h7 h8 h9 H10 H11 h12
DIAMETER milimete
~ to 3 +0.004/0 +0.006/0 +0.01/0 +0.014/0 +0.025/0 +0.04/0 +0.06/0 +0.1/0
over 3 to 6 +0.005/0 +0.008/0 +0.012/0 +0.018/0 +0.03/0 +0.048/0 +0.075/0 +0.12/0
over 6 to 10 +0.006/0 +0.009/0 +0.015/0 +0.022/0 +0.036/0 +0.058/0 +0.09/0 +0.15/0
over 10 to 18 +0.008/0 +0.011/0 +0.018/0 +0.027/0 +0.043/0 +0.07/0 +0.11/0 +0.18/0
over 18 to 30 +0.009/0 +0.013/0 +0.021/0 +0.033/0 +0.052/0 +0.084/0 +0.13/0 +0.21/0
over 30 to 50 +0.011/0 +0.016/0 +0.025/0 +0.039/0 +0.062/0 +0.1/0 +0.16/0 +0.25/0
over 50 to 80 +0.013/0 +0.019/0 +0.03/0 +0.046/0 +0.074/0 +0.12/0 +0.19/0 +0.3/0
over 80 to 120 +0.015/0 +0.022/0 +0.035/0 +0.054/0 +0.087/0 +0.14/0 +0.22/0 +0.35/0
over 120 to 180 +0.018/0 +0.025/0 +0.04/0 +0.063/0 +0.1/0 +0.16/0 +0.25/0 +0.4/0
over 180 to 250 +0.02/0 +0.029/0 +0.046/0 +0.072/0 +0.115/0 +0.185/0 +0.29/0 +0.46/0

AISI 1018 Square Bar Sizes And Schedules

Type SIZES (Inches) SIZES (mm) ISO Tolerance
Peeled and Polished 1.50 - 6.00 40.00 - 150.00 h11, h11-DIN 1013
Cold Drawn and Polish 1/8 - 3.00 3.00 to 75.00 h8, h9, h10, h11
Cold Drawn and Ground 5/6 - 2.50 10.00 to 75.00 h8, h9, h10, h11
Peeled and Ground 3/4 - 2.00 20.00 to 50.00 h9, h10, h11

AISI 108 Carbon steel Round Bar Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).

5.0 45.0
6.0 50.0
7.0 55.0
8.0 60.0
9.0 65.0
10.0 70.0
12.0 75.0
16.0 80.0
20.0 90.0
25.0 100.0
30.0 130.0
35.0 160.0
40.0 200.0
